Polyester spiral network

  • Polyester Spiral dryer mesh Fabrics Medium loop spiral dryer mesh
  • Polyester Spiral dryer mesh Fabrics Medium loop spiral dryer mesh
Polyester Spiral dryer mesh Fabrics Medium loop spiral dryer meshPolyester Spiral dryer mesh Fabrics Medium loop spiral dryer mesh

Polyester Spiral dryer mesh Fabrics Medium loop spiral dryer mesh

  • Polyester Spiral Press-Filter Fabrics
  • Polyester Spiral Press-Filter Fabrics
  • Polyester Spiral Press-Filter Fabrics
  • Polyester Spiral Press-Filter Fabrics

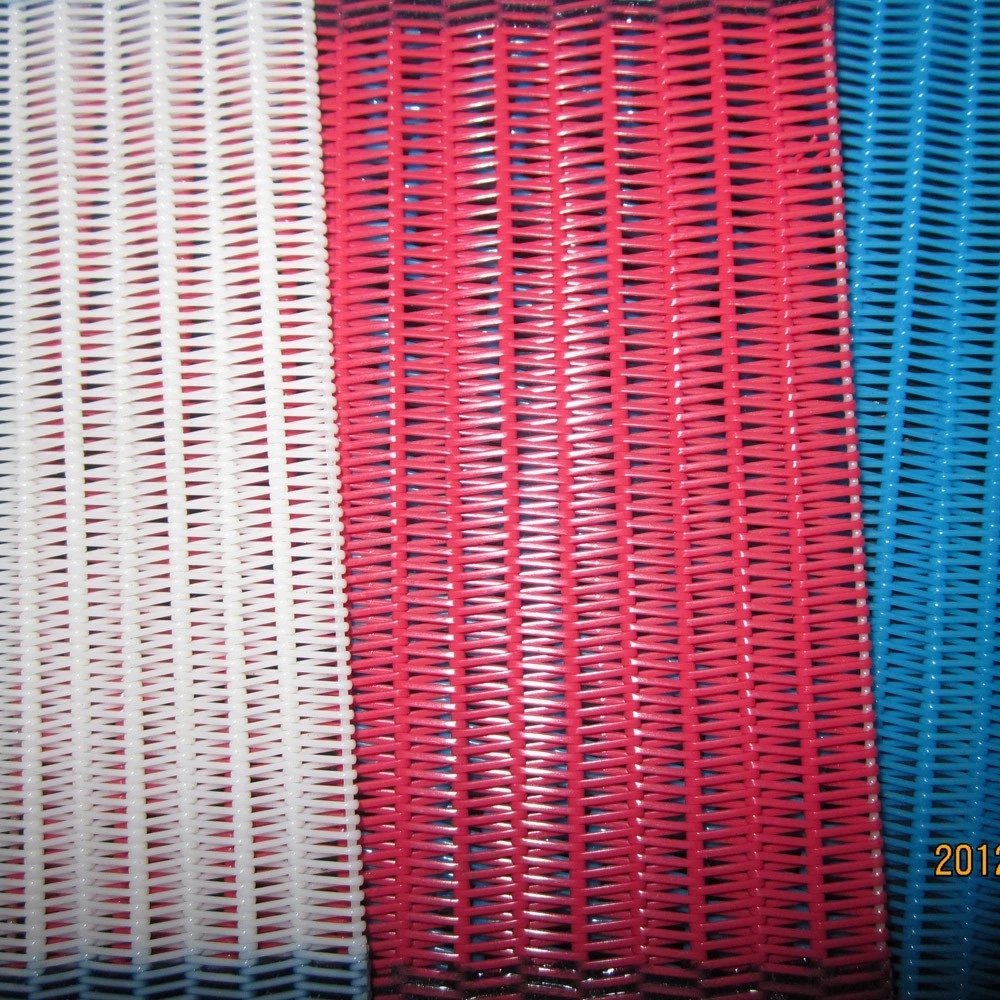

  • Product description: Polyester Spiral Press-Filter Fabrics ,large loop spiral dryer mesh ,Medium loop spiral dryer mesh,small loop spiral dryer mesh
  • INQUIRY

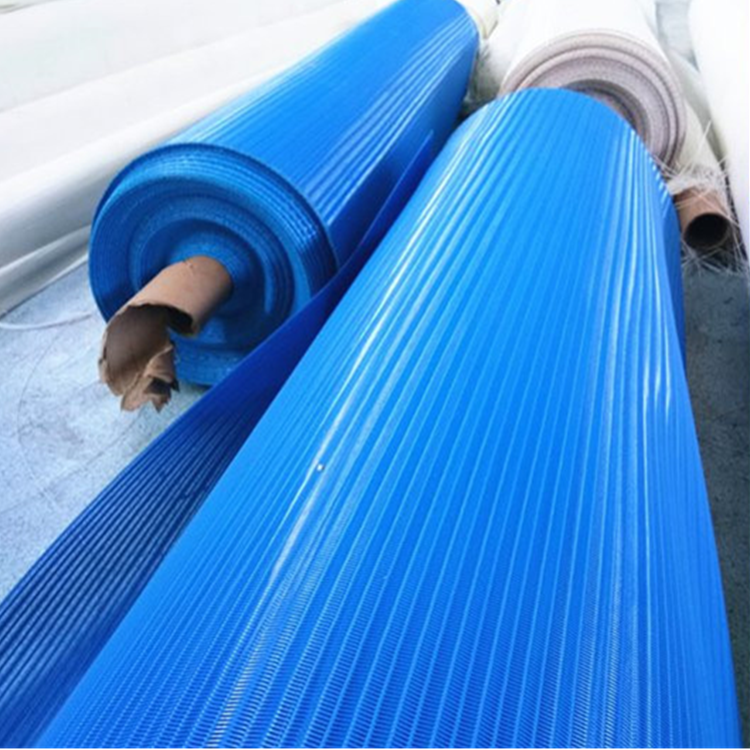

Polyester Spiral dryer mesh Fabrics





Polyester spiral link dryer farbic belt application:
1) - Polyester spiral link dryer fabric belt with high strength,good permeability,so this fabric belt is also used for high-pressure press-filter water,horizontal belt washer,pulp-liquor separator and mesh belt coal-washer etc.
2) - This fabric belt is widely used in all kinds of industries,such as printing and dying,food,salt industry,pharmacy,environment protection etc.
3) - Polyester spiral link dryer fabric belt is also used in papermaking industry,such as paper pulp drying,forming,and paper making sewage treatment etc.

Type
Spec. of loop
(mm)
Spiral loop filament dia.
(mm)
Threading filament dia.
(mm)
Strength
(N/cm)
Thickness (mm)
Weight of mesh (kg/m2)
Air permeability (cfm)

Super loop
4.8X10
0.9
1.1
2300
3.03
1.64
1170+/-30
Large loop
3.8X7.0
0.68
0.9
2000
2.45
1.40
1000+/-30
Medium
loop
3.5X6.0
0.68
0.9
2000
2.45
1.31
890+/-30
Small loop
3.2X5.2
0.5
0.8
1800
1.87
0.97
840+/-30

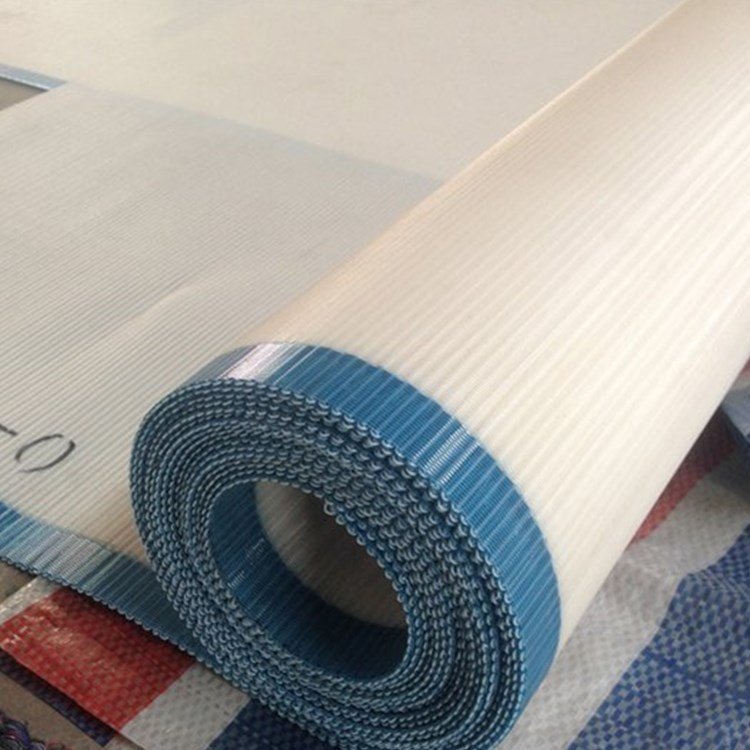

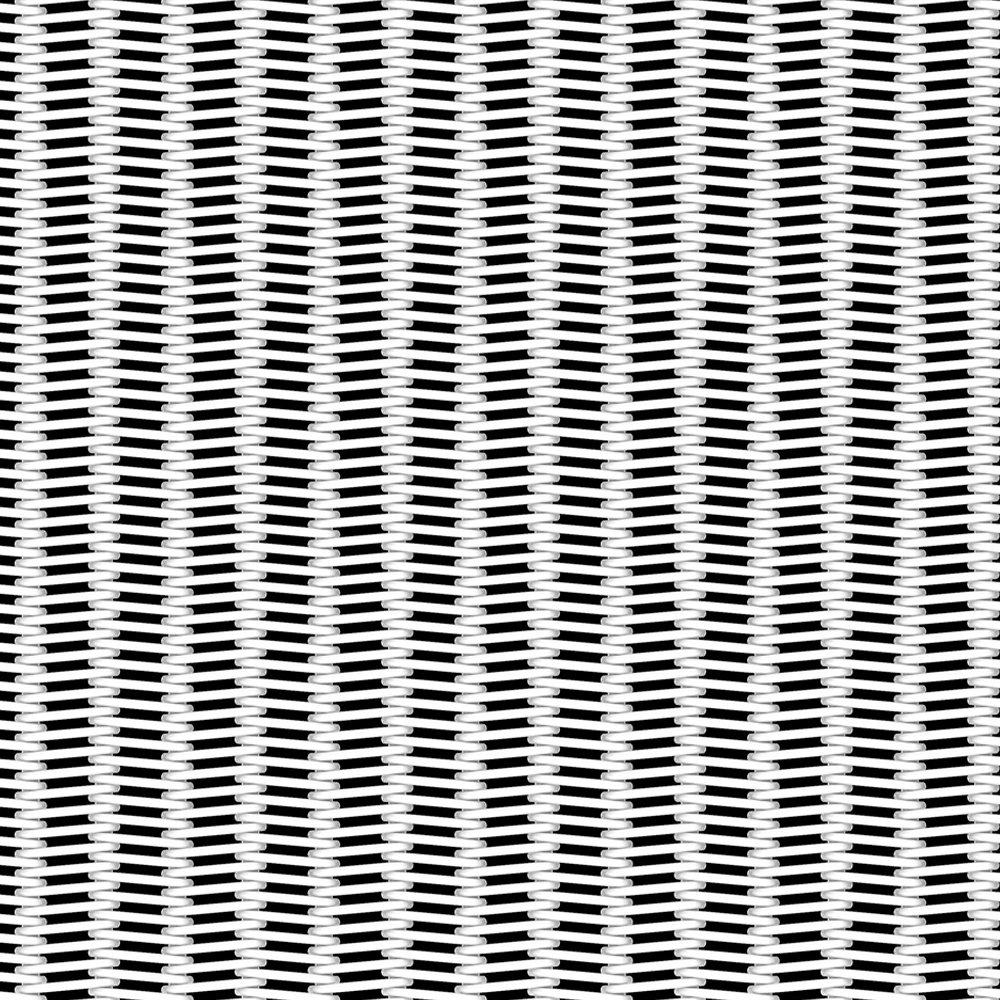

Medium loop spiral dryer mesh
Material: Polyester monofilament. (PET 100% and Hydrolytic resistance)
Uses and Features:
Polyester spiral dry fabric is mainly used in the Dryer Section in the paper machine, Dryer and Conveyor facility in Metallurgical and Mining industrial. Drying process of printing and dyeing, dewatering fabrics for the washing coal machine, Horizontal belt washer, Sludge dewatering facility, Belt filter press, Horizontal Vacuum belt filter, Desulfuration equipment and other filter industrial.
Advantages:
Flat surface, not easily cracked, good air permeability, stable property against heat and moisture, low thermal shrinking, less elongation at heat, long lifetime.
Model Thread Diameter (mm) Thickness(mm) Weight(kg/m2) Air Permeability
(m3/m2h)
Warp Weft
Large loop "B" 0.9 1.1 3 1.7 21600+-500
Large loop "A" 0.9 1.1 3 1.9 12500
Medium loop "B" 0.7 0.9 2.5 1.4 20500+-500
Medium loop "A" 0.7 0.9 2.5 1.7 11700
Small loop "B" 0.5 0.7 1.9 1.1 16200+-500
Small loop "A" 0.5 0.7 1.9 1.4 13400
