yarn dyed plastic bobbin cone

Plastic textile yarn dyeing bobbins

yarn dyeing plastic cone
dyeing yarn plastic bobbin
plastic tube for dyeing yarn
plastic bobbin tube
Product description: yarn dyed plastic bobbin cone, plastic dyeing yarn bobbin plastic cone for yarn dyed, platic tube cone
INQUIRY

Plastic textile yarn dyeing bobbin

other name: plastic dyeing cone, plastic dye pipe and plastic dyeing tube etc.

Specification
Abundant experience and factory directly
Customized
Quality and service assurance

Plastic textile yarn dyeing bobbin strong points:
Injection and machined easily
Chemical stability (except strong acid, strong alkali )
Insulating ability
Excellent machenial strenghth
pp with glass fiber can higher temperature resistance and dimensional stability
Resistance to heat: long term thermal resistance is about 120ºC and repeated steam
No-toxic

We can also offer different sizes and shape. Pls let us know your need bobbin artwork or sample.

Dyeing bobbin details:

Bobbins are repeatable for dyeing, and strong intension with lower price.
A wide range of specification for your selection.

Special specification is made of order

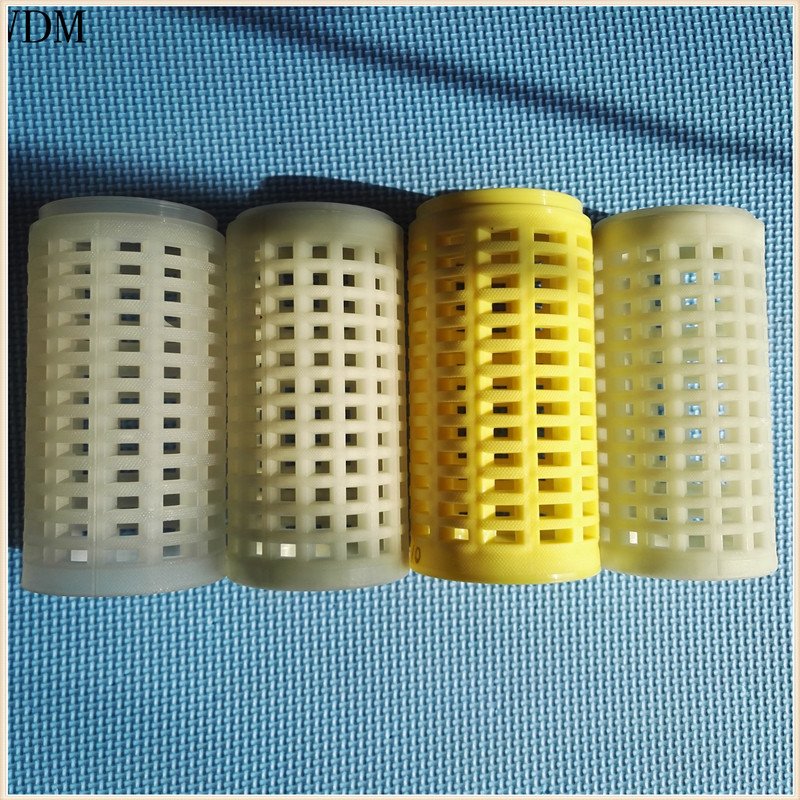

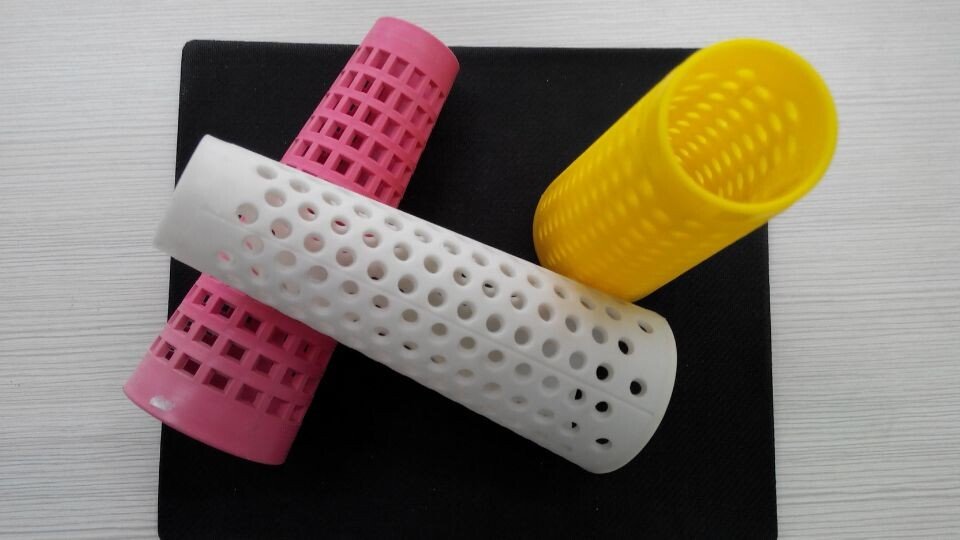

Dyeing bobbin

Packaging & Delivery
Packaging Details: according to customer's require
Delivery Detail: 30days

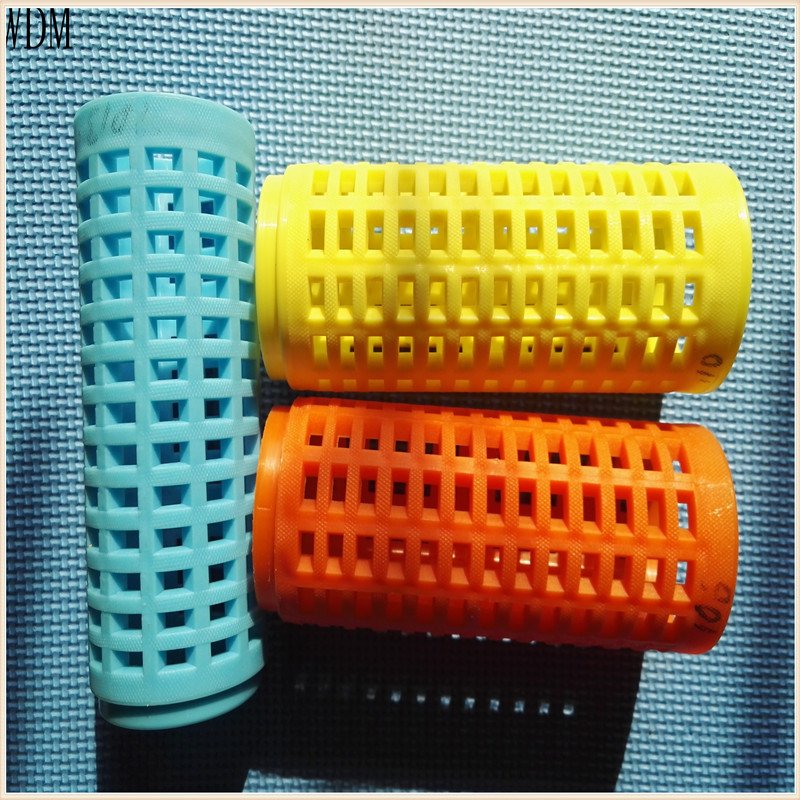

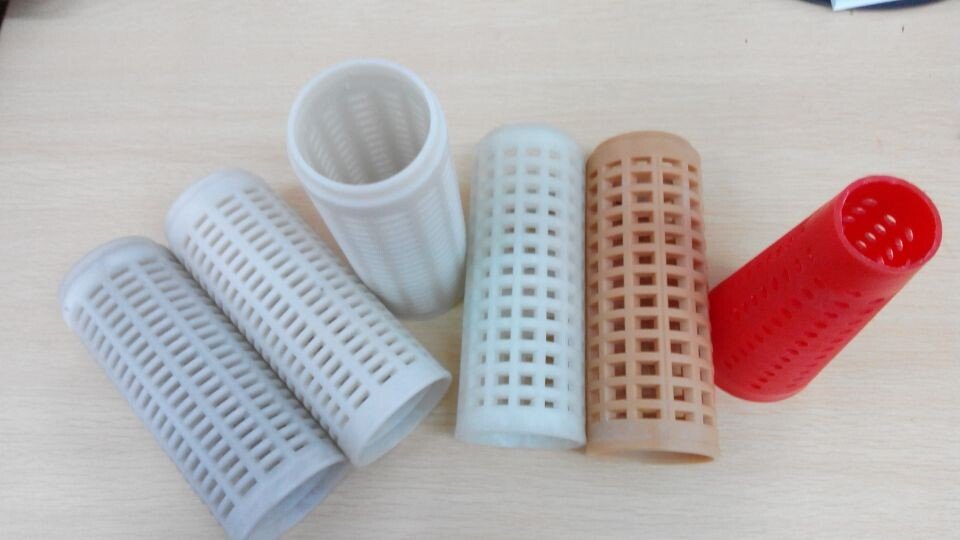

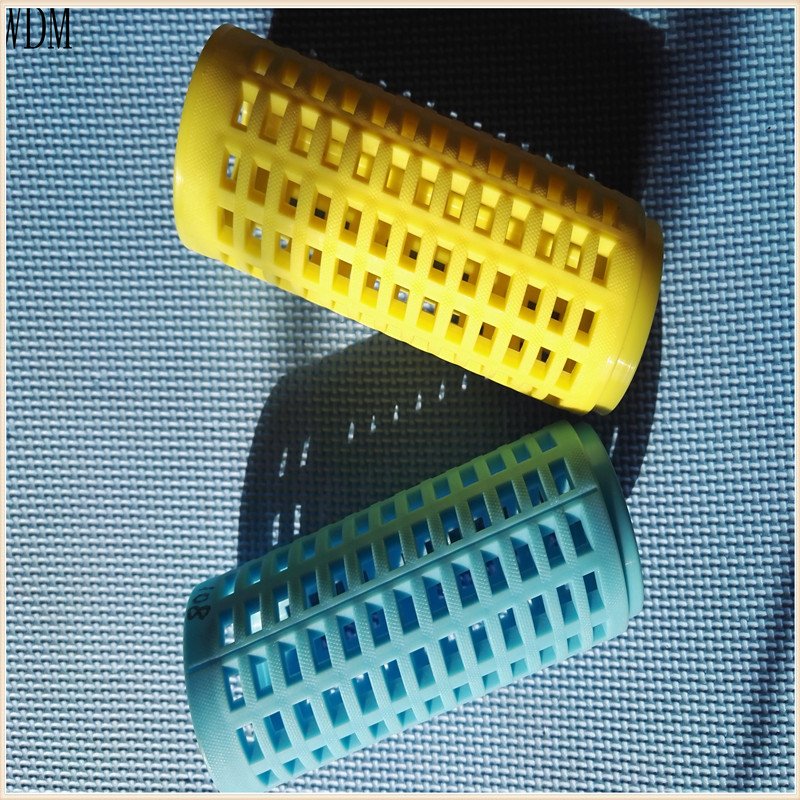

Dyeing bobbin

modal	Top diameter/mm	Bottom diameter/mm	Length/mm	Weight/g	Material
WDM049	51	63	172	110	PP
WDM050	55	65	172	100	PP
WDM051	50	65	172	118	PP
WDM052	53	64	173	140	PP
WDM053	55	71	172	168	PP
WDM054	55	64	170	143	PP
WDM055	52	68	173	152	PP
WDM056	58	61	172	160	PP
WDM057	57	78	172	110	PP
WDM058	33	67	174	148	PP
WDM059	55	61	170	43	HT-PP
WDM060	71	79	150	134	HT-PP
WDM061	41	56	170	78	HT-PP
WDM062	60	56	170	43	HT-PP
WDM063	34	56	170	29	HT-PP
WDM064	40	46	176	45	HT-PP
WDM065	33	43	170	37	HT-PP
WDM066	54	65	168	62	HT-PP
WDM067	34	56	172	37	HT-PP
WDM068	59	79	161	128	HT-PP
WDM073	56	60	230	63-80	PC/ABC
WDM074	56	61	230	77	PC/ABC
WDM075	49	61	230	63	PC/ABC
WDM076	48	62	230	81	PC/ABC
WDM077	57	74	230	94	PC/ABC
WDM078	48	68	230	173	PC/ABC
WDM079	56	64	230	150	PC/ABC
WDM080	58	66	230	68	PC/ABC
